TEL15-1212N, TEL15-1211N DC/DC Converters

TRACO POWER

Description

DC/DC Converter TEL 15N Series, 15 Watt * Ultra compact 15 Watt converter in DIP-16 metal casing * Highest power density of 4.51 W/c.

📥 Download Datasheet

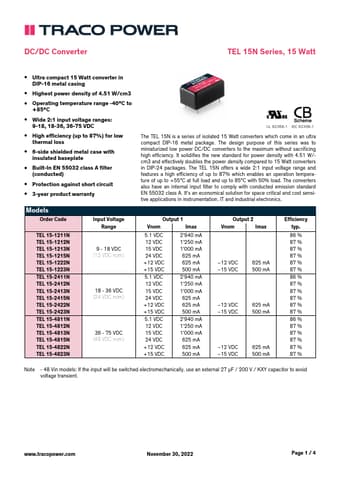

TEL15-1212N Datasheet Preview — This datasheet PDF includes multiple part numbers: TEL15-1212N, TEL15-1211N. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: TEL15-1212N, TEL15-1211N
Manufacturer: TRACO POWER
File Size: 1.12 MB
Datasheet: TEL15-1211N-TRACOPOWER.pdf
Description: DC/DC Converters
Note: This datasheet PDF includes multiple part numbers: TEL15-1212N, TEL15-1211N.
Please refer to the document for exact specifications by model.

Features

* a high efficiency of up to 87% which enables an operation temperature of up to +55°C at full load and up to 85°C with 50% load. The converters also have an internal input filter to comply with conducted emission standard EN 55032 class A. It's an economical solution for space critical and cost sensi

Applications

* in instrumentation, IT and industrial electronics. Output 1 Vnom Imax 5.1 VDC 2'940 mA 12 VDC 1'250 mA 15 VDC 1'000 mA 24 VDC 625 mA +12 VDC 625 mA +15 VDC 500 mA 5.1 VDC 2'940 mA 12 VDC 1'250 mA 15 VDC 1'000 mA 24 VDC 625 mA +12 VDC 625 mA +15 VDC 500 mA 5.1 VDC 2'940 m
