TDR2-1212WI - DC/DC Converter

Download the TDR2-1212WI datasheet PDF (TDR2-1211WI included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for dc/dc converter.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TDR2-1211WI-TRACOPOWER.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TDR2-1212WI
Manufacturer TRACO POWER
File Size 885.11 KB
Description DC/DC Converter
Datasheet download datasheet TDR2-1212WI Datasheet

📁 Similar Datasheet

Other Datasheets by TRACO POWER

Full PDF Text Transcription

Click to expand full text

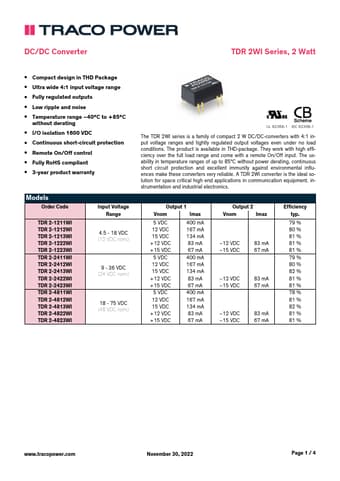

DC/DC Converter TDR 2WI Series, 2 Watt • Compact design in THD Package • Ultra wide 4:1 input voltage range • Fully regulated outputs • Low ripple and noise • Temperature range –40°C to +85°C without derating • I/O isolation 1600 VDC • Continuous short-circuit protection • Remote On/Off control • Fully RoHS compliant • 3-year product warranty Models Order Code TDR 2-1211WI TDR 2-1212WI TDR 2-1213WI TDR 2-1222WI TDR 2-1223WI TDR 2-2411WI TDR 2-2412WI TDR 2-2413WI TDR 2-2422WI TDR 2-2423WI TDR 2-4811WI TDR 2-4812WI TDR 2-4813WI TDR 2-4822WI TDR 2-4823WI Input Voltage Range 4.5 - 18 VDC (12 VDC nom.) 9 - 36 VDC (24 VDC nom.) 18 - 75 VDC (48 VDC nom.
