JT030N065WED - N-CHANNEL IGBT

Product Overview

📥 Download Datasheet

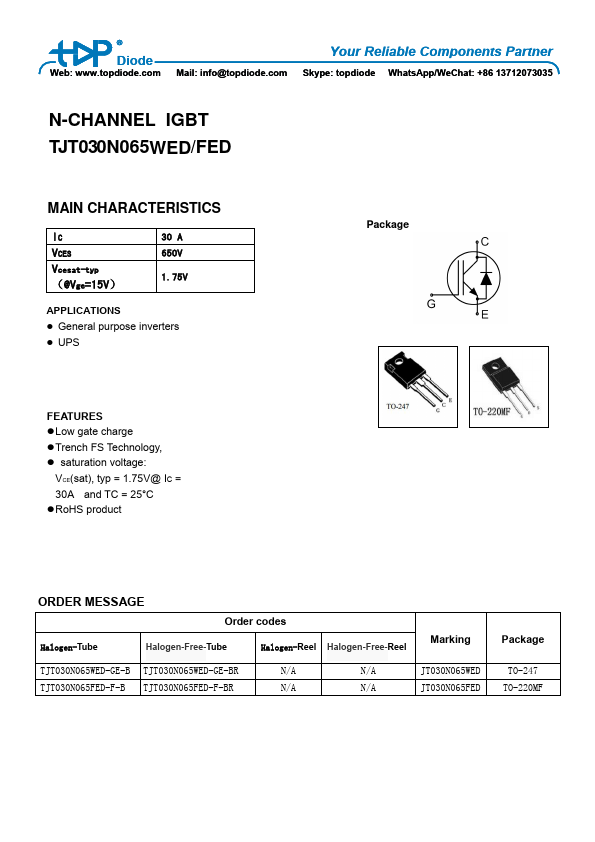

JT030N065WED N-CHANNEL IGBT by TOP Diode - Datasheet Preview — Datasheet preview – JT030N065WED

Datasheet Details

Part number	JT030N065WED
Manufacturer	TOP Diode
File Size	1.09 MB
Description	N-CHANNEL IGBT
Datasheet	JT030N065WED Datasheet

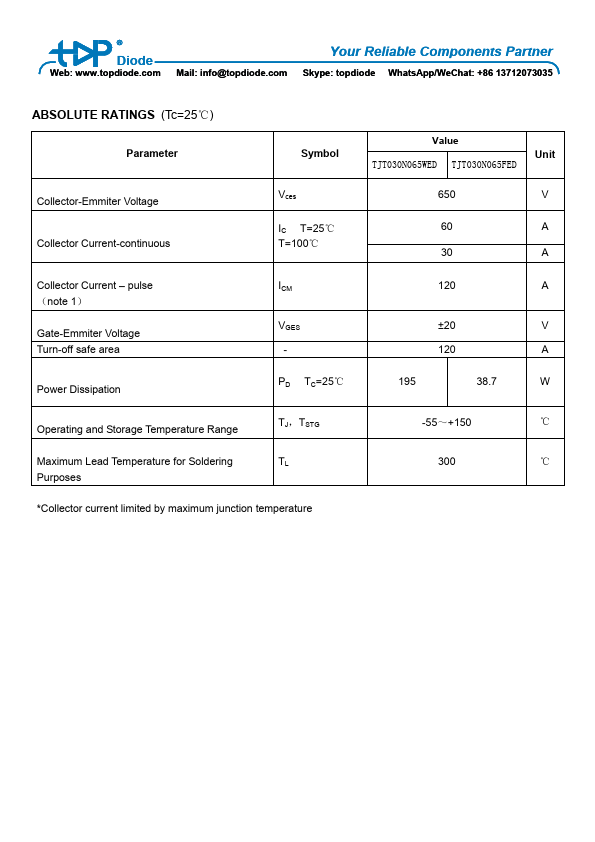

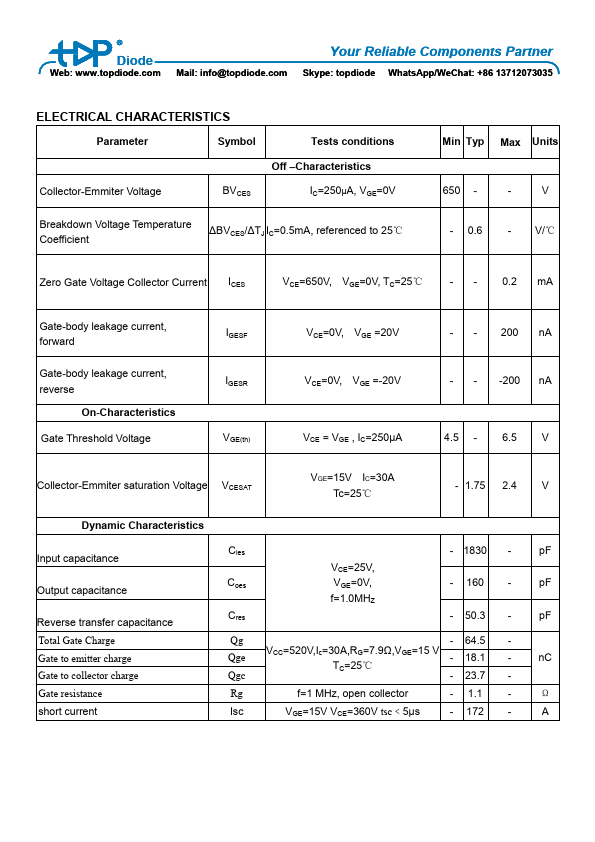

Additional preview pages of the JT030N065WED datasheet.

Product details

Features

Low gate charge.
Trench FS Technology,.
saturation voltage: VCE(sat), typ = 1.75V@ IC = 30A and TC = 25°C.
RoHS product ORDER.
