DFE201610C - Metal Alloy Inductors

Features

  • Miniature size: 2016 footprint (2.0mm×1.6mm) and low profile(1.0mm Max. height).
  • The use of magnetic iron powder ensure capability for large current.
  • The use of Flat wire for Low DC resistance.
  • Magnetically shielded, low audible core noise.
  • Reflow solderable.
  • Operating temperature : -40～+85°C.
  • (2.0ｘ1.6ｍｍ、1.0mm Max. ).
  • 、.
  • ：-40～+85°C.

📥 Download Datasheet

Datasheet Details

Part number DFE201610C
Manufacturer TOKO
File Size 185.56 KB
Description Metal Alloy Inductors
Datasheet download datasheet DFE201610C Datasheet

📁 Similar Datasheet

Other Datasheets by TOKO

Full PDF Text Transcription

Click to expand full text

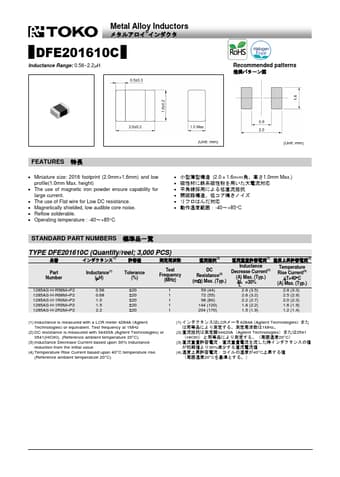

Metal Alloy Inductors ® DFE201610C Inductance Range: 0.56~2.2H Recommended patterns (Unit: mm) (Unit: mm) FEATURES  Miniature size: 2016 footprint (2.0mm×1.6mm) and low profile(1.0mm Max. height)  The use of magnetic iron powder ensure capability for large current.  The use of Flat wire for Low DC resistance.  Magnetically shielded, low audible core noise.  Reflow solderable.  Operating temperature : -40～+85°C  (2.0ｘ1.6ｍｍ、1.0mm Max.
