DAT - DIELECTRIC ANTENNA

Name: DAT
SKU: DAT-578988

TOKO

📥 Download Datasheet

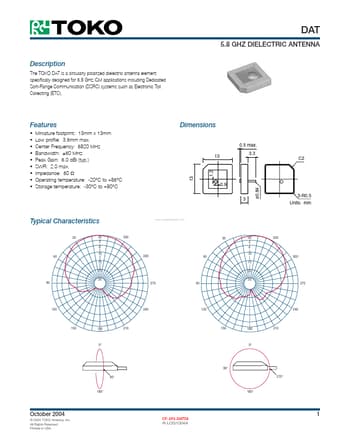

DAT Datasheet Preview — Preview of DAT PDF

Datasheet Details

Part number	DAT
Manufacturer	TOKO
File Size	124.76 KB
Description	DIELECTRIC ANTENNA
Datasheet	DAT_TOKO.pdf

DAT Product details

Description

The TOKO DAT is a circularly polarized dielectric antenna element specifically designed for 5.8 GHz ISM applications including Dedicated Sort-Range Communication (DSRC) systems such as Electronic Toll Collecting (ETC).

Features

Miniature footprint: 13mm x 13mm Low profile: 3.5mm max. Center Frequency: 5820 MHz Bandwidth: ±50 MHz Peak Gain: 5.0 dBi (typ. ) SWR: 2.0 max. Impedance: 50 Ω Operating temperature: -20°C to +85°C Storage temperature: -30°C to +90°C Dimensions 0.5 max. 13 3.3 C2 13 1.2 0.9 ø0.84 3 3-R0.5 Units: mm Typical Characteristics 30 00 3 6 60 10 15 20 25 90 300 330 www. DataSheet4U. com 30 00 3 6 330 60.
