DAKC1575MS74T - GPS DIELECTRIC PATCH ANTENNA

Product Overview

TOKO

Part number	DAKC1575MS74T
Manufacturer	TOKO
File Size	574.14 KB
Description	GPS DIELECTRIC PATCH ANTENNA
Datasheet	DAKC1575MS74T Datasheet

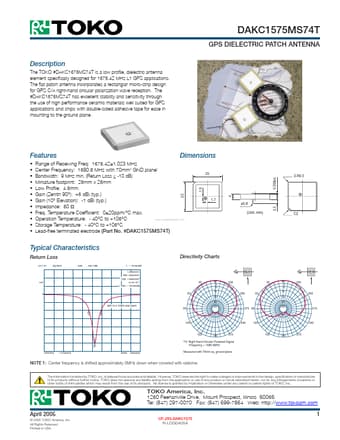

Additional preview pages of the DAKC1575MS74T datasheet.

The TOKO #DAKC1575MS74T is a low profile, dielectric antenna element specifically designed for 1575.42 MHz L1 GPS applications.

Dimensions 25 0.5Max. 3-R0.5 Range of Receiving Freq: 1575.42±1.023 MHz Center Frequency: 1580.5 MHz with 70mm2 GND plane1 Bandwidth: 9 MHz min. (Return Loss ≤ -10 dB) Miniature footprint: 25mm x 25mm Low Profile: 4.5mm Gain (Zenith 90°): +5 dBi (typ. ) Gain (10° Elevation): -1 dBi (typ. ) Impedance: 50 Ω Freq. Temperature Coefficient: 0±20ppm/°C max. www. DataSheet4U. com Operat.
