BD20A02 100 Base-T DUAL Port Transformer

100 Base-T DUAL Port Transformer Module Dongguan TNK Industry Co., Ltd. P/N: BD20A02 Designed to meet IEEE802.3u requirement Primary inductance 350uH min with 8mA DC Bias RoHS Compliant. Operating temperature range:0℃to+70℃ Storage temperature range:-25℃to+125℃ Electrical Specifications @ 25℃ Part Number BD20A02 Turn Ratio Tx Rx 1:1 1:1 Insertion Loss 0.5~100MHz (dB Max) -1.0 0.5-30 MHz -16 Return Loss (dB Min) 30.1-60 60.1-80 MHz MHz -14 -12 Cross Talk (dB Min) 0.5-40 40.1-10.

BD20A02 Datasheet (64.35 KB)

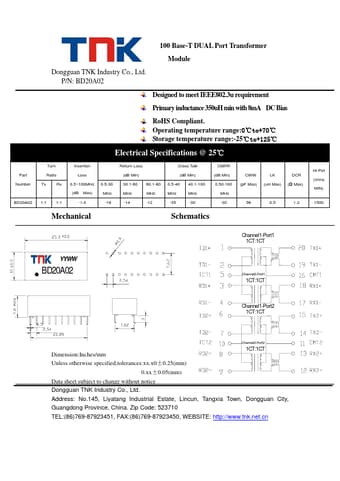

BD20A02 Datasheet Preview — Preview of BD20A02 PDF

Datasheet Details

Part number:

BD20A02

Manufacturer:

TNK

File Size:

64.35 KB

Description:

100 base-t dual port transformer.
