TABF15 - Square Surface Mount Fuses

Product Overview

Datasheet Details

Part number	TABF15
Manufacturer	TLC
File Size	368.03 KB
Description	Square Surface Mount Fuses
Datasheet	TABF15 Datasheet

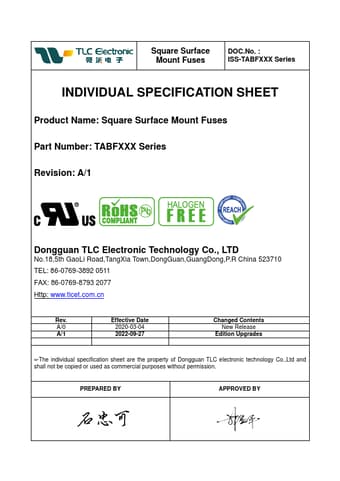

Additional preview pages of the TABF15 datasheet.

Product details

Description

Square Surface Mount Fuses TABFXXX series fast-acting square Surface Mount Fuses are ceramic tube/end cap constructions, RoHS compliant, Halogen Free and lead (Pb) exempts of the requirements of RoHS Directive(2002/95/EC), with U.S.

Features

Fast-acting.
Small size 6.1mm x 2.7mm.
Operating temperature: -55℃~125℃.
One-time protective effect.
RoHS Compliant.
Follow UL248-14 0 Electrical Characteristics % of Ampere Rating 100% 200% Opening Time 4 hours Min. 60 sec Max. Electrical Specifications by Item Product model Ampere Rating TABF15 15A Voltage Rating 125Vac 72Vdc Breaking Capacity Cold Resistance (mΩ) 200A@125Vac 500A@72Vdc 2.48 Melting thermal energy I2T(A2S) 130.50 Safety Approvals.
