1.5SMBJ5.0A - Transient Voltage Suppressors

Name: 1.5SMBJ5.0A
SKU: 1.5SMBJ5.0A-1589618

📥 Download Datasheet

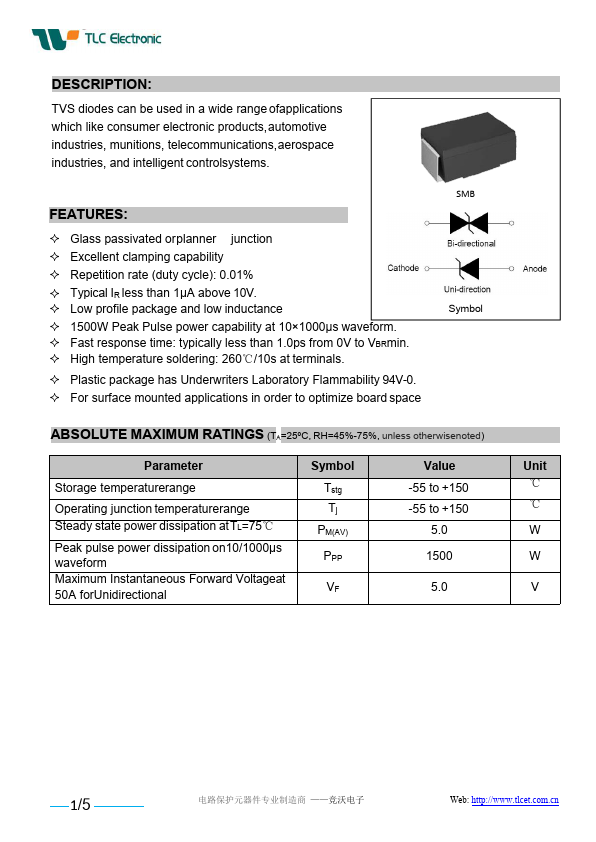

1.5SMBJ5.0A Datasheet Preview — Preview of 1.5SMBJ5.0A PDF

Datasheet Details

Part number	1.5SMBJ5.0A
Manufacturer	TLC Electronic
File Size	208.68 KB
Description	Transient Voltage Suppressors
Datasheet	1.5SMBJ5.0A-TLCElectronic.pdf

1.5SMBJ5.0A Product details

Description

TVS diodes can be used in a wide range ofapplications which like consumer electronic products,automotive industries, munitions, telecommunications,aerospace industries, and intelligent controlsystems.

Features

Glass passivated orplanner junction.
Excellent clamping capability.
Repetition rate (duty cycle): 0.01%.
Typical IR less than 1μA above 10V.
Low profile package and low inductance.
1500W Peak Pulse power capability at 10×1000μs waveform.
Fast response time: typically less than 1.0ps from 0V to VBRmin.
High temperature soldering: 260℃/10s at terminals.
Plastic package has Underwriters Laboratory Flammability 94V-0.
For surface mounted appli.
