SS2020L 2.0A SURFACE MOUNT SCHOTTKY BARRIER

SS2020L Description

SS2020L ~ SS2100L 2.0A SURFACE MOUNT SCHOTTKY BARRIER CASE：SOD-123L DIMENSIONS IN MILLIMETERS AND (INCHES) .

SS2020L Features

* LOW POWERLOSSES,HIGH EFFICIENCY
* LOW FORWARD VOLTAGE DROP
* HIGH SURGE CAPABILITY
* ULTRAFAST REVERSE RECOVERY TIME
* BOTH NORMAL AND Pb FREE PRODUCT ARE AVAILABLE: NORMAL:80~95%Sn,5~20%Pb Pb FREE:98.5% Sn ABOVE MECHANICAL DATA
* CASE：SOD-123L,PLASTIC
* TERMINALS：SOLDE

📥 Download Datasheet

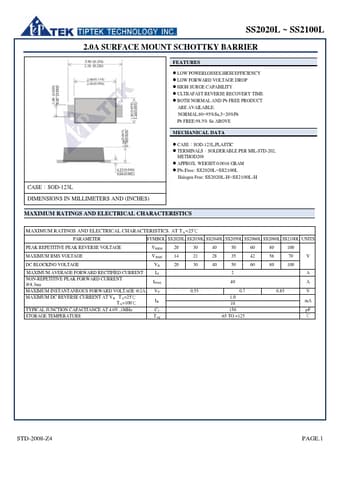

Preview of SS2020L PDF
datasheet Preview Page 2

Datasheet Details

Part number
SS2020L
Manufacturer
TIPTEK
File Size
152.50 KB
Datasheet
SS2020L-TIPTEK.pdf
Description
2.0A SURFACE MOUNT SCHOTTKY BARRIER
