3.0SMCJ8.0C - 3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Download the 3.0SMCJ8.0C datasheet PDF (3.0SMCJ5.0 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 3000w surface mount transient voltage suppressor.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (3.0SMCJ5.0-TIPTEK.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 3.0SMCJ8.0C
Manufacturer TIPTEK
File Size 381.49 KB
Description 3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Datasheet download datasheet 3.0SMCJ8.0C Datasheet

📁 Similar Datasheet

  • 3.0SMCJ8.0C - 3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (Won-Top Electronics)
  • 3.0SMCJ8.0CA - 3000W Surface Mount Transient Voltage Suppressors (CITC)
  • 3.0SMCJ8.0CA - Surface Mount Transient Voltage Suppressors (JGD)
  • 3.0SMCJ8.0CA - SMD Transient Voltage Suppressor Diodes (Diotec)
  • 3.0SMCJ8.0CA - SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (LITE-ON)
  • 3.0SMCJ8.0CA - 3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (Won-Top Electronics)
  • 3.0SMCJ8.0CA - 3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (Diodes)
  • 3.0SMCJ8.0 - 3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (Won-Top Electronics)
  • 3.0SMCJ8.0 - Transient Voltage Suppressors (HITANO)
  • 3.0SMCJ8.0 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (Bruckewell)
Other Datasheets by TIPTEK
  • 3.0SMCJ8.0 - 3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • 3.0SMCJ8.0A - 3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • 3.0SMCJ8.0AC - 3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • 3.0SMCJ8.5 - 3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • 3.0SMCJ8.5A - 3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • 3.0SMCJ8.5C - 3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • 3.0SMCJ8.5CA - 3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
  • 3.0SMCJ80 - 3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription

Click to expand full text

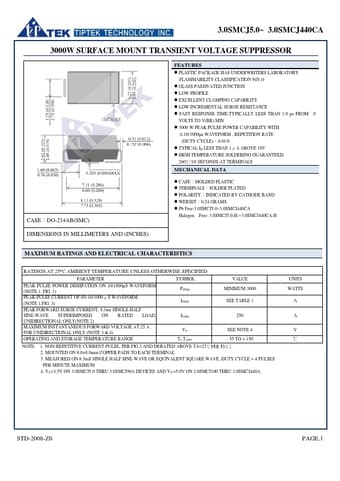

3.0SMCJ5.0~ 3.0SMCJ440CA 3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR CASE：DO-214AB(SMC) FEATURES  PLASTIC PACKAGE HAS UNDERWRITERS LABORATORY FLAMMABILITY CLASSIFICATION 94V-0  GLASS PASSIVATED JUNCTION  LOW PROFILE  EXCELLENT CLAMPING CAPABILITY  LOW INCREMENTAL SURGE RESISTANCE  FAST RESPONSE TIME:TYPICALLY LESS THAN 1.0 ps FROM 0 VOLTS TO V(BR) MIN  3000 W PEAK PULSE POWER CAPABILITY WITH A 10/1000μs WAVEFORM , REPETITION RATE (DUTY CYCLE)︰0.01%  TYPICAL ID LESS THAN 1μA ABOVE 10V  HIGH TEMPERATURE SOLDERING GUARANTEED: 260℃/10 SECONDS AT TERMINALS MECHANICAL DATA  CASE︰MOLDED PLASTIC  TERMINALS：SOLDER PLATED  POLARITY：INDICATED BY CATHODE BAND  WEIGHT：0.24 GRAMS  Pb Free:3.0SMCJ5.0~3.0SMCJ440CA Halogen Free: 3.0SMCJ5.0-H-~3.
