THAT1243, THAT1240 Balanced Line Receiver

THAT1243 Description

.
The THAT 1240-series of precision differential amplifiers was designed primarily for use as balanced line receivers for audio applications.

THAT1243 Features

* High CMRR: typ. 90 dB at 60Hz
* Excellent audio performance
* Wide bandwidth: typ. >8.6 MHz
* High slew rate: typ. 12 V/μs
* Low distortion: typ. 0.0006% THD
* Low noise: typ. -104 dBu
* Low current: typ. 2 mA
* Several gains: 0 dB, ±

THAT1243 Applications

* Balanced Audio Line Receivers
* Instrumentation Amplifiers
* Differential Amplifiers
* Precision Summers

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: THAT1243, THAT1240. Please refer to the document for exact specifications by model.

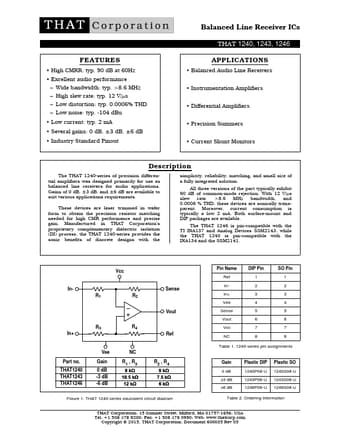

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
THAT1243, THAT1240
Manufacturer
THAT
File Size
151.45 KB
Datasheet
THAT1240-THAT.pdf
Description
Balanced Line Receiver
Note
This datasheet PDF includes multiple part numbers: THAT1243, THAT1240.
Please refer to the document for exact specifications by model.
