DF005 - Silicon Bridge Rectifiers

Product Overview

TGS

Part number	DF005
Manufacturer	TGS
File Size	80.58 KB
Description	Silicon Bridge Rectifiers
Datasheet	DF005 Datasheet

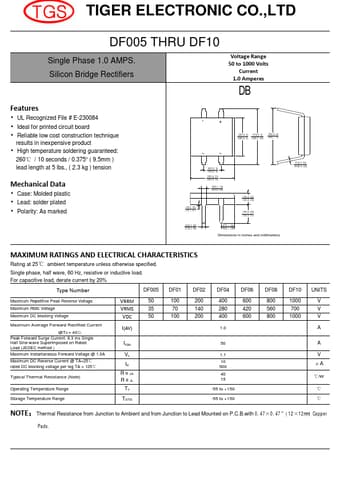

Additional preview pages of the DF005 datasheet.

UL Recognized File # E-230084.
Ideal for printed circuit board.
Reliable low cost construction technique results in inexpensive product.
High temperature soldering guaranteed: 260℃ / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs. , ( 2.3 kg ) tension Mechanical Data.
Case: Molded plastic.
Lead: solder plated.
Polarity: As marked -+ .255(6.5) .315(8.0) .350(8.9) .245(6.2) .285(7.24) .300(7.6) ~~ .08(2.03) .05(1.27) .023(0.58).
