Datasheet Details
| Part number | 2SD401A |
|---|---|
| Manufacturer | TGS |
| File Size | 171.42 KB |
| Description | Complementary Silicon Power Ttransistors |
| Datasheet |
 2SD401A_TGS.pdf
|
| Part number | 2SD401A |
|---|---|
| Manufacturer | TGS |
| File Size | 171.42 KB |
| Description | Complementary Silicon Power Ttransistors |
| Datasheet |
2SD401A_TGS.pdf
|

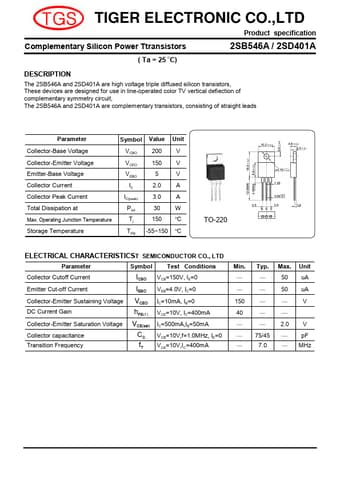

O 2SB546A / 2SD401A The 2SB546A and 2SD401A are high voltage triple diffused silicon transistors, These devices are designed for use in line-operated color TV vertical defiection of complementary symmetry circuit, The 2SB546A and 2SD401A are complementary transistors, consisting of straight leads Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Peak Current Total Dissipation at Max.Operating Junction Temperature Symbol VCBO VCEO VEB
