U217B - Zero Voltage Switch

U217B Description

U217B/ U217B-FP Zero Voltage Switch with Adjustable Ramp .
The integrated circuit, U217B, is designed as a zerovoltage switch in bipolar technology.

U217B Features

* D Direct supply from the mains D Current consumption ≤ 0.5 mA D Very few external components D Full wave drive
* no dc current component in the load circuit D Negative output current pulse typ. 100 mA
* short circuit protected D Simple power control D Ramp generator D Reference volta

U217B Applications

* D Full wave power control D Temperature regulation D Power blinking switch Package: DIP8, SO8 Block Diagram 95 10872 220 kW R2 (250 V~) (Rsync) D1 BYT86/800 R1 18 kW/ 2W Load 1000 W L C2 2.2 mF/ 10 V R4 100 kW R5 15 kW max 100 kW min R6 58 kW 2 1 Ramp genera

📥 Download Datasheet

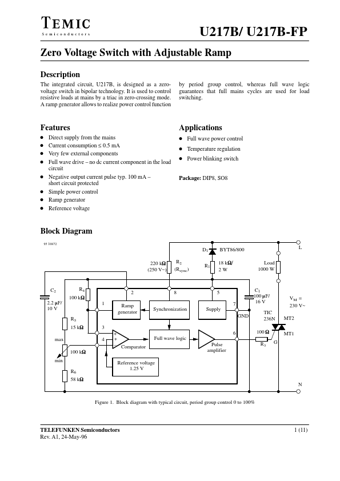

Preview of U217B PDF
