S849T - MOS Monolithic Integrated Circuit

S849T Description

S849T/S849TR MOSMIC® for TV-Tuner Prestage with 12 V Supply Voltage MOSMIC * MOS Monolithic Integrated Circuit Electrostatic sensitive devic.

S849T Features

* D Integrated gate protection diodes D Low noise figure D High gain D Biasing network on chip G2 AGC G1 RF in C block RFC VDD D RF out S C block 94 9296 D Improved cross modulation at gain reduction D High AGC-range D SMD package 2 1 1 2 3 4 94 9279 S849T Marking: 849 Plastic case (SOT

📥 Download Datasheet

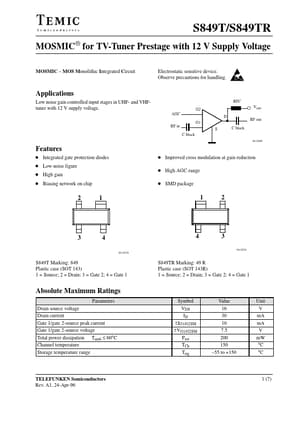

Preview of S849T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S849T
Manufacturer
TEMIC
File Size
99.87 KB
Datasheet
S849T-TEMIC.pdf
Description
MOS Monolithic Integrated Circuit
