U6081B - PWM Power Control with Low Duty Cycle Switch Off

TEMIC Semiconductors

The U6081B by TEMIC Semiconductors is a PWM Power Control with Low Duty Cycle Switch Off. Below is the official datasheet preview.

Datasheet Details

Part number	U6081B
Manufacturer	TEMIC Semiconductors
File Size	121.03 KB
Description	PWM Power Control with Low Duty Cycle Switch Off
Datasheet	U6081B_TEMICSemiconductors.pdf

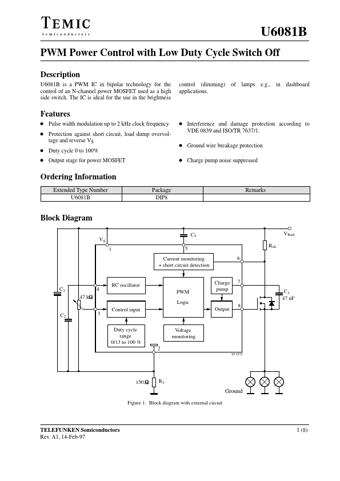

Additional preview pages of the U6081B datasheet.

U6081B is a PWM IC in bipolar technology for the control of an N-channel power MOSFET used as a high side switch.

D Pulse width modulation up to 2 kHz clock frequency D Protection against short circuit, load dump overvoltage and reverse VS D Interference and damage protection according to VDE 0839 and ISO/TR 7637/1. D Duty cycle 0 to 100% D Output stage for power MOSFET D Ground wire breakage protection D Charge pump noise suppressed Ordering Information Extended Type Number U6081B Package DIP8 Remarks Block Diagram VS 1 5 Current monitoring + short circuit detection Charge pump 6 C5 Rsh VBatt C1 47.
