U4083 - Low-Power Audio Amplifier for Telephone Applications

General Description

The integrated circuit, U4083B, is a low power audio amplifier for a telephone loudspeaker.

It has differential speaker outputs to maximize the output swing at low supply voltages.

There is no need for coupler capacitors.

Key Features

  • D Wide operating voltage range: 2 to 16 V D Battery powered.

📥 Download Datasheet

Datasheet Details

Part number U4083
Manufacturer TEMIC Semiconductors
File Size 132.05 KB
Description Low-Power Audio Amplifier for Telephone Applications
Datasheet download datasheet U4083 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
U4082B VOICE SWITCHED SPEAKER-PHONE CIRCUIT Unisonic Technologies
U401 Dual N-Channel JFET Switch Calogic LLC
U401 N-Channel JFETs Siliconix
U402 Dual N-Channel JFET Switch Calogic LLC
U402 N-Channel JFETs Siliconix

Other Datasheets by TEMIC Semiconductors

Part Number Description
U4083B Low-Power Audio Amplifier for Telephone Applications
U4080B Voice-Switched Circuit for Handsfree Operation
U4087B Low Voltage Voice Switch Interface Circuit
U4030B Telephone Speech Circuit
U4050B Speech Circuit

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

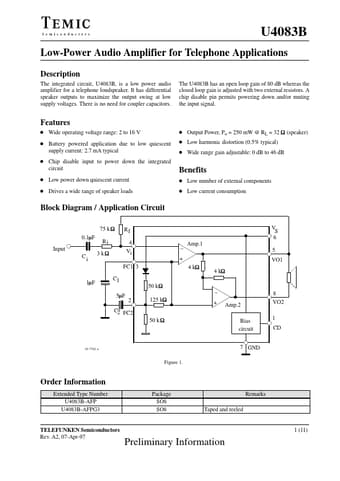

U4083B Low-Power Audio Amplifier for Telephone Applications Description The integrated circuit, U4083B, is a low power audio amplifier for a telephone loudspeaker. It has differential speaker outputs to maximize the output swing at low supply voltages. There is no need for coupler capacitors. The U4083B has an open loop gain of 80 dB whereas the closed loop gain is adjusted with two external resistors. A chip disable pin permits powering down and/or muting the input signal. Features D Wide operating voltage range: 2 to 16 V D Battery powered application due to low quiescent supply current: 2.7 mA typical D Output Power, Po = 250 mW @ RL = 32 W (speaker) D Low harmonic distortion (0.
