U2795B - 2.5-GHz Double Balanced Mixer

TEMIC Semiconductors

The U2795B by TEMIC Semiconductors is a 2.5-GHz Double Balanced Mixer. Below is the official datasheet preview.

Datasheet Details

Part number	U2795B
Manufacturer	TEMIC Semiconductors
File Size	350.49 KB
Description	2.5-GHz Double Balanced Mixer
Datasheet	U2795B_TEMICSemiconductors.pdf

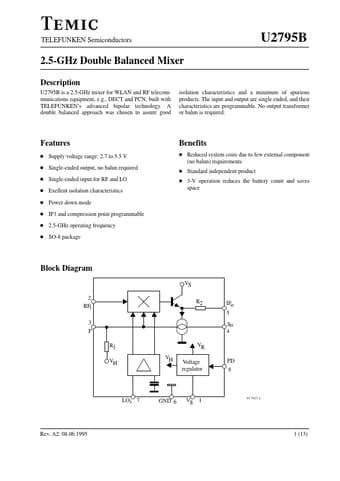

Additional preview pages of the U2795B datasheet.

U2795B is a 2.5-GHz mixer for WLAN and RF telecommunications equipment, e.g., DECT and PCN, built with TELEFUNKEN’s advanced bipolar technology.

D Supply voltage range: 2.7 to 5.5 V D Single-ended output, no balun required D Single-ended input for RF and LO D Exellent isolation characteristics D Power down mode D IP3 and compression point programmable D 2.5-GHz operating frequency D SO-8 package Benefits D Reduced system costs due to few external component (no balun) requirements D Standard independent product D 3-V operation reduces the battery count and saves space Block Diagram VS 2 RFi 3 P R1 VH VH VR Voltage regulator PD 8 R2 IFo.
