UTC547 - Thin-Film Cascadable Amplifier

TELEDYNE

📥 Download Datasheet

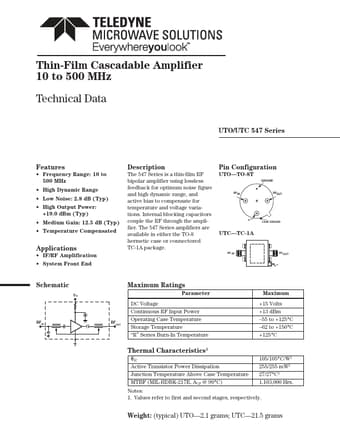

UTC547 Datasheet Preview — Preview of UTC547 PDF

Datasheet Details

Part number	UTC547
Manufacturer	TELEDYNE
File Size	192.19 KB
Description	Thin-Film Cascadable Amplifier
Datasheet	UTC547-TELEDYNE.pdf

UTC547 Product details

Description

The 547 Series is a thin-film RF bipolar amplifier using lossless feedback for optimum noise figure and high dynamic range, and active bias to compensate for temperature and voltage variations. TO-8T GROUND RFIN RFOUT V+ CASE GROUND UTC TC-1A RF IN RFOUT V+ Schematic V+ RFIN Maximu

Features

Frequency Range: 10 to 500 MHz.
High Dynamic Range.
Low Noise: 2.8 dB (Typ).
High Output Power: +19.0 dBm (Typ).
Medium Gain: 12.5 dB (Typ).
Temperature Compensated.
