420DD, 420 Established Reliability / Military Relay

420DD Description

Series 420/422 DPDT Mag-Latching Established Reliability / Military Relay TO-5 RELAYS ESTABLISHED RELIABILITY MILITARY DPDT SERIES  420/422  420D/42.
The magnetic-latching TO-5 relay, originally conceived and developed by Teledyne, has become one of the industry standards for low-level switching fro.

420DD Features

* and manufacturing techniques provide excellent resistance to environmental extremes and overall high reliability:
* All welded construction.
* Unique uni-frame design providing high magnetic efficiency and mechanical rigidity.
* High force/mass ratios for resistance to shock

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 420DD, 420. Please refer to the document for exact specifications by model.

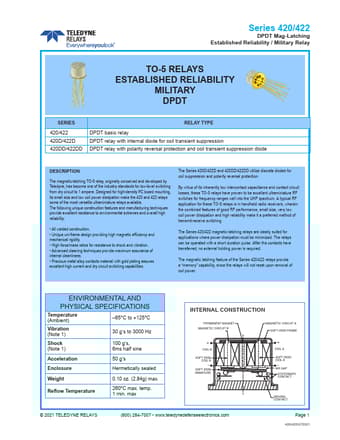

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
420DD, 420
Manufacturer
TELEDYNE
File Size
742.65 KB
Datasheet
420-TELEDYNE.pdf
Description
Established Reliability / Military Relay
Note
This datasheet PDF includes multiple part numbers: 420DD, 420.
Please refer to the document for exact specifications by model.
