Series 114
DPDT Non-Latching Established Reliability / Military Relay
CENTIGRID® ESTABLISHED RELIABILITY
MILITARY DPDT
SERIES
114 114D 114DD
RELAY TYPE
DPDT basic relay DPDT relay with internal diode for coil transient suppression DPDT relay with internal diodes for coil transient suppression and polarity reversal protection
DESCRIPTION
The 114 sensitive Centigrid® relay retains the same features as the 114 standard Centigrid® relay with only a minimal increase in profile height (.275 in.). Its .100-inch grid spaced terminals, which preclude the need for spreader pads, and its low profile make the 114 relay ideal for applications where high packaging density is important.

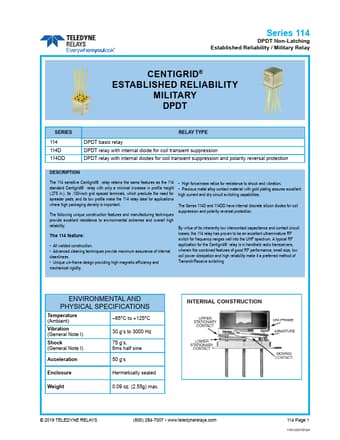

114DD Datasheet
