ORWH-SS-112D1F - Miniature PCB Relay

Download the ORWH-SS-112D1F datasheet PDF. This datasheet also covers the ORWH variant, as both devices belong to the same miniature pcb relay family and are provided as variant models within a single manufacturer datasheet.

Description

Socket, rated 10A at 300VAC.

and Canada.

layout as relay.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ORWH-TE.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
ORWH-SS-112D 10 Amp Miniature Power PC Board Relay Tyco
ORWH-SS-112DM 10 Amp Miniature Power PC Board Relay Tyco
ORWH-SS-105D 10 Amp Miniature Power PC Board Relay Tyco
ORWH-SS-106D 10 Amp Miniature Power PC Board Relay Tyco
ORWH-SS-109D 10 Amp Miniature Power PC Board Relay Tyco

Other Datasheets by TE Connectivity

Part Number Description
ORWH-SS-112DM1F Miniature PCB Relay
ORWH-SS-112H3F Miniature PCB Relay
ORWH-SS-112HM3F Miniature PCB Relay
ORWH-SS-118H3F Miniature PCB Relay
ORWH-SS-105D1F Miniature PCB Relay

Full PDF Text Transcription

Click to expand full text

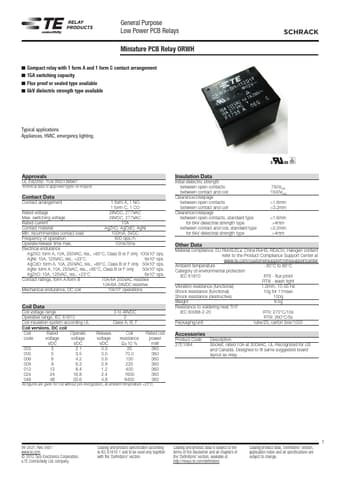

General Purpose Low Power PCB Relays Miniature PCB Relay ORWH n Compact relay with 1 form A and 1 form C contact arrangement n 15A switching capacity n Flux proof or sealed type available n 6kV dielectric strength type available SCHRACK Typical applications Appliances, HVAC, emergency lighting. Approvals UL E82292, TUV R50138967 Technical data of approved types on request. Contact Data Contact arrangement 1 form A, 1 NO 1 form C, 1 CO Rated voltage 28VDC, 277VAC Max. switching voltage 28VDC, 277VAC Rated current 10A Contact material AgZnO, AgCdO, AgNi Min. recommended contact load 100mA, 5VDC Frequency of operation 600 ops./h Operate/release time max. 10ms/5ms Electrical endurance AgZnO: form A, 10A, 250VAC, res.
