GA30K6A1D - THERMISTORS

Download the GA30K6A1D datasheet PDF. This datasheet also covers the GA3K3A1A variant, as both devices belong to the same thermistors family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Interchangeability.
  • Proven stability and reliability.
  • Rapid time response.
  • Alloy lead wires for reduced thermal conductivity ("stem effect").
  • Thermally conductive epoxy coating.
  • Temperature range -40ºC to +125ºC.
  • Custom probe assemblies available.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GA3K3A1A-TE.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
GA300 SILICON CONTROLLED RECTIFIERS Digitron Semiconductors
GA300A SILICON CONTROLLED RECTIFIERS Digitron Semiconductors
GA300ABPL12 IGBT GeneSiC
GA300TD60S Standard Speed IGBT Vishay Siliconix
GA301 SILICON CONTROLLED RECTIFIERS Digitron Semiconductors

Other Datasheets by TE Connectivity

Part Number Description
GA30K6A1A THERMISTORS
GA30K6A1B THERMISTORS
GA30K6A1C THERMISTORS
GA30K5A1A THERMISTORS
GA30K5A1B THERMISTORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

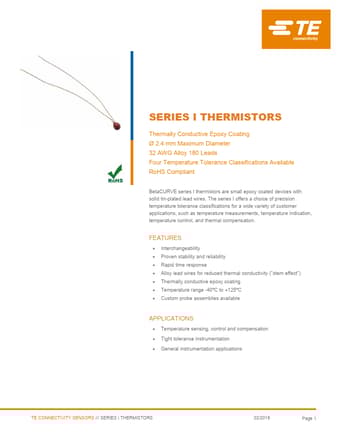

SERIES I THERMISTORS Thermally Conductive Epoxy Coating Ø 2.4 mm Maximum Diameter 32 AWG Alloy 180 Leads Four Temperature Tolerance Classifications Available RoHS Compliant BetaCURVE series I thermistors are small epoxy coated devices with solid tin-plated lead wires. The series I offers a choice of precision temperature tolerance classifications for a wide variety of customer applications, such as temperature measurements, temperature indication, temperature control, and thermal compensation.
