VLS252015T - SMD Inductors

VLS252015T Description

(1/2) SMD Inductors(Coils) For Power Line(Wound, Magnetic Shielded) VLS Series VLS252015 .

VLS252015T Features

* Miniature size Mount area: 2.5× 2mm Height: 1.5mm max.
* Generic use for portable DC to DC converter line.
* High magnetic shield construction should actualize high resolution for EMC protection. www. DataSheet4U. com
* Available for automatic mounting in tape and rea

VLS252015T Applications

* DVCs, DSCs, PDAs, LCD displays, cellular phones, HDDs, etc. 0.8 0.85 0.85 Conformity to RoHS Directive SHAPES AND DIMENSIONS 2.0±0.1 2.5±0.1 1.5max. Dimensions in mm RECOMMENDED PC BOARD PATTERN 2.0 Dimensions in mm ELECTRICAL CHARACTERISTICS Part No. VLS252015T-1R0N1R7 VLS252015T-1R5N1R4 VLS25

📥 Download Datasheet

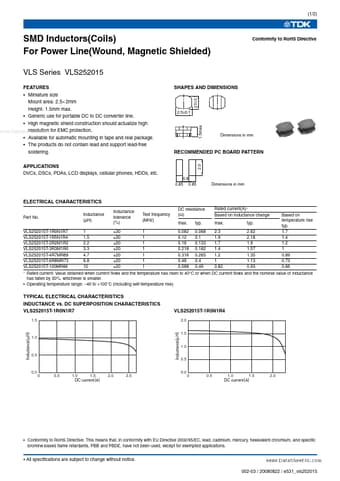

Preview of VLS252015T PDF
datasheet Preview Page 2

Datasheet Details

Part number
VLS252015T
Manufacturer
TDK
File Size
70.65 KB
Datasheet
VLS252015T_TDK.pdf
Description
SMD Inductors
