PFC3125ER Choke Coils

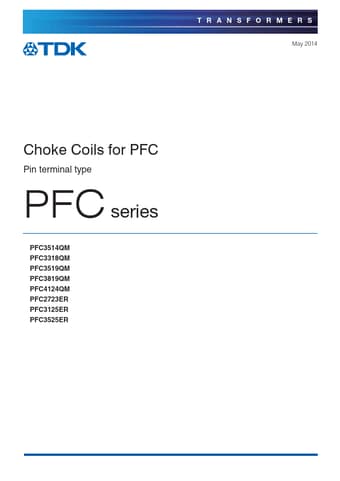

TRANSFORMERS May 2014 Choke Coils for PFC Pin terminal type PFC series PFC3514QM PFC3318QM PFC3519QM PFC3819QM PFC4124QM PFC2723ER PFC3125ER PFC3525ER TRANSFORMERS (2/22) An attention matter on use Please read this specifications before using this product by all means. An attention matter on security I undertake use with this product, and it is paid attention enough, and please design an attention matter safely. Attention on a design When you designs a base of an electric circuit. Please use.

PFC3125ER Features

* A low height(15.5 to 27mm in height) is achieved. Large current is achieved in a small shape. APPLICATION AV equipment, digital consumer electronics PART NUMBER CONSTRUCTION PFC 3514QM - 351 K 07 Series name Core shape Inductance code 350 35μH (35x100) 351 350μH (35x101) 352 3500μH(35x102) Ind
