Datasheet Details
Part number:
MEA1608L, MEA2010L
Manufacturer:
TDK
File Size:
119.05 KB
Description:
3-terminal filters.
Note:
This datasheet PDF includes multiple part numbers: MEA1608L, MEA2010L.
Please refer to the document for exact specifications by model.

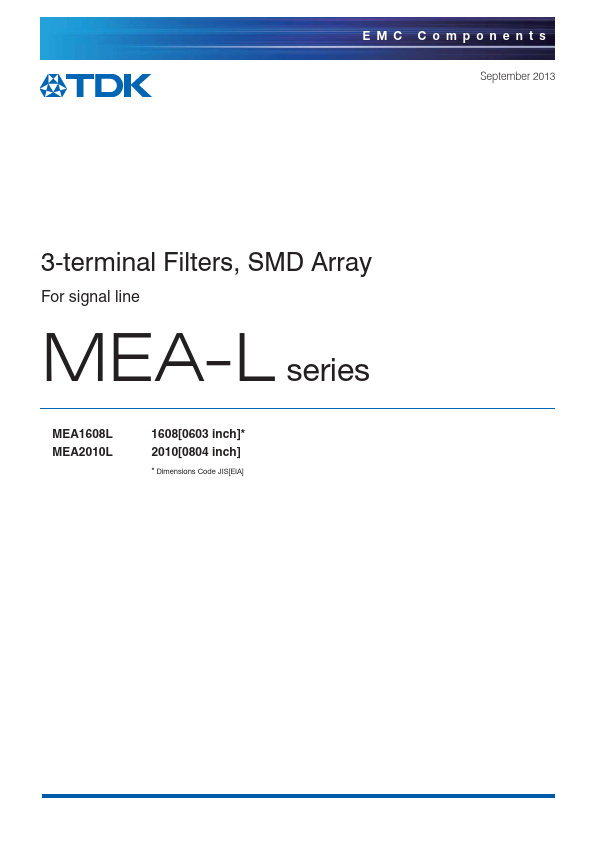

EMC Components September 2013 3-terminal Filters, SMD Array For signal line MEA-L series MEA1608L MEA2010L 1608[0603 inch] 2010[0804 inch] Dimensions Code JIS[EIA] (2/9) EMC Components REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications.

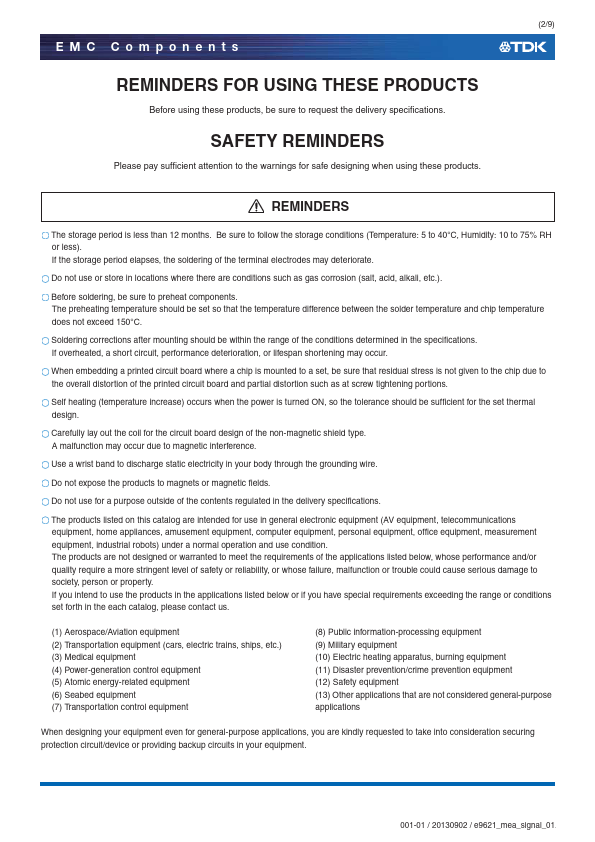

SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products.
REMINDERS The storage period is less than 12 months.
Be sure to follow the

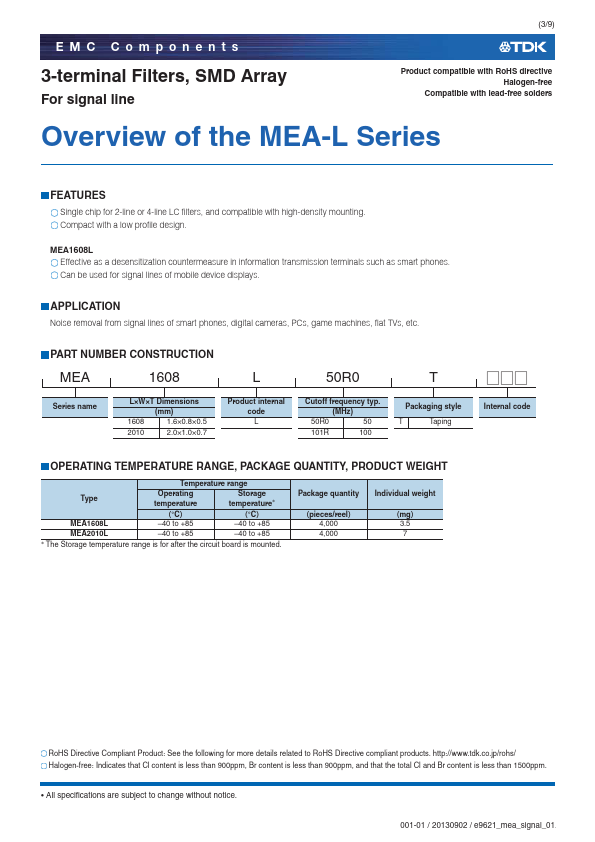

MEA1608L Features
* Single chip for 2-line or 4-line LC filters, and compatible with high-density mounting. Compact with a low profile design. MEA1608L Effective as a desensitization countermeasure in information transmission terminals such as smart phones. Can be used for signal lines of mobile device displays. APPLI
