DPX201990DT-4151A2 Multilayer Diplexer

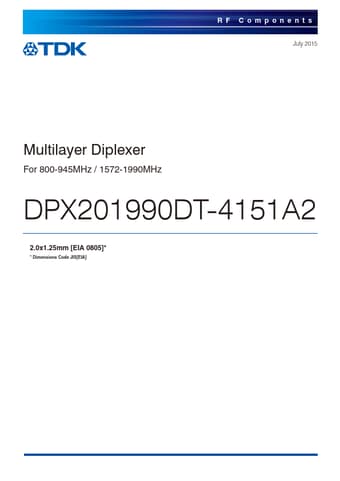

RF Components July 2015 Multilayer Diplexer For 800-945MHz / 1572-1990MHz DPX201990DT-4151A2 2.0x1.25mm [EIA 0805] Dimensions Code JIS[EIA] RF Components Multilayer Diplexer For 800-945MHz / 1572-1990MHz DPX201990DT-4151A2 SHAPES AND DIMENSIONS [Top view] 2.00±0.15 (6) (5) (4) 0.90±0.10 1.25±0.15 (1) (2) (3) Marking [Bottom view] 0.65±0.15 0.30±0.15 0.20±0.15 0.35±0.15 0.20±0.15 Terminal functions 1 GND 2 Common 3 GND 4 Low-band 5 GND 6 High-band Dimensions in mm RECOMM.
