CU4S0508 Datasheet - TDK

CU4S0508 RF Component

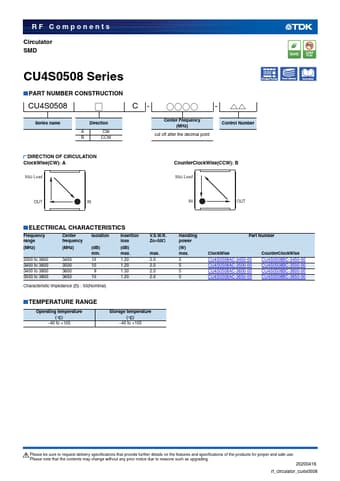

RF Components Circulator SMD CU4S0508 Series PART NUMBER CONSTRUCTION CU4S0508 ˘ C- ˓˓˓˓ - ˚˚ Series name Direction A CW B CCW Center Frequency (MHz) cut off after the decimal point Control Number DIRECTION OF CIRCULATION ClockWise(CW): A 50Ω Load CounterClockWise(CCW): B 50Ω Load RoHS Pb Lead Free OUT IN IN OUT ELECTRICAL CHARACTERISTICS Frequency range Center frequency Isolation Insertion loss (MHz) 3300 to 3600 3400 to 3600 3400 to 3800 3500 to 3800 (MHz) 3450 35.

CU4S0508 Features

* and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20200416 rf_circulator_cu4s0508_en.fm 1.6 1.0 1.0 RF Components CU4S0508 Series SHAPES AND DIMENSIONS [Top view] 5.0±0.3 2.5±0.2 (3
