78Q2120C - 10/100BASE-TX Transceiver

Name: 78Q2120C
SKU: 78Q2120C-682515

TDK Semiconductor

The 78Q2120C by TDK Semiconductor is a 10/100BASE-TX Transceiver. Below is the official datasheet preview.

Datasheet Details

Part number	78Q2120C
Manufacturer	TDK Semiconductor
File Size	333.85 KB
Description	10/100BASE-TX Transceiver
Datasheet	78Q2120C_TDKSemiconductor.pdf

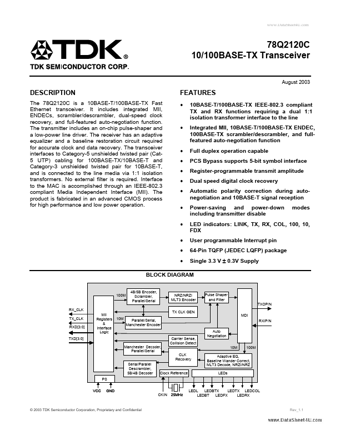

Additional preview pages of the 78Q2120C datasheet.

The 78Q2120C is a 10BASE-T/100BASE-TX Fast Ethernet transceiver.

10BASE-T/100BASE-TX IEEE-802.3 compliant TX and RX functions requiring a dual 1:1 isolation transformer interface to the line Integrated MII, 10BASE-T/100BASE-TX ENDEC, 100BASE-TX scrambler/descrambler, and fullfeatured auto-negotiation function Full duplex operation capable PCS Bypass supports 5-bit symbol interface Register-programmable transmit amplitude Dual speed digital clock recovery Automatic polarity correction during autonegotiation and 10BASE-T signal reception Power-saving.
