ZMM5221B - 500mW Surface Mount Zener Diodes

TAITRON

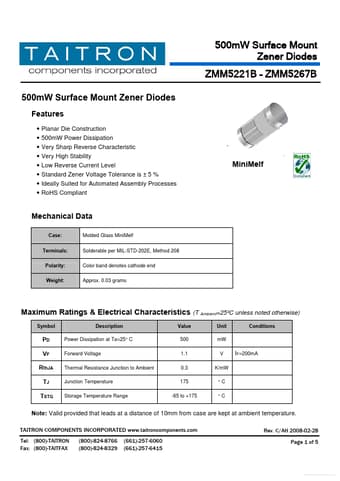

ZMM5221B Datasheet Preview — Preview of ZMM5221B PDF

Datasheet Details

Part number	ZMM5221B
Manufacturer	TAITRON
File Size	223.99 KB
Description	500mW Surface Mount Zener Diodes
Datasheet	ZMM5221B_TAITRON.pdf

ZMM5221B Product details

Description

Power Dissipation at Ta=25° C Forward Voltage Thermal Resistance Junction to Ambient Junction Temperature Storage Temperature Range Value 500 1.1 0.3 175 -65 to +175 Unit mW V K/mW °C °C Conditions PD VF RthJA TJ TSTG IF=200mA Note: Valid provided that leads at a distance of 10mm from case are kept at ambient temperature.TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com Tel: (800)-TAITRON Fax: (800)-TAITFAX (800)-824-8766 (800)-824-8329 (661)-257-6060 (661)-257-6415 Rev.C/AH 2008-02

Features

Planar Die Construction 500mW Power Dissipation Very Sharp Reverse Characteristic Very High Stability Low Reverse Current Level Standard Zener Voltage Tolerance is ± 5 % Ideally Suited for Automated Assembly Processes RoHS Compliant MiniMelf Mechanical Data Case: Terminals: Polarity: Weight: Molded Glass MiniMelf Solderable per MIL-STD-202E, Method 208 Color band denotes cathode end Approx. 0.03 grams Maximum Rati.
