UF5407G, UF5400G - 3.0A Glass Passivated Ultra Fast Recovery Rectifier

TAITRON

The UF5407G by TAITRON is a 3.0A Glass Passivated Ultra Fast Recovery Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

UF5407G 3.0A Glass Passivated Ultra Fast Recovery Rectifier by TAITRON - Datasheet Preview — Official preview page of the **UF5407G** 3.0A Glass Passivated Ultra Fast Recovery Rectifier datasheet (TAITRON).

Datasheet Details

Part number	UF5407G, UF5400G
Manufacturer	TAITRON
File Size	155.80 KB
Description	3.0A Glass Passivated Ultra Fast Recovery Rectifier
Datasheet	UF5400G-TAITRON.pdf
Note	This datasheet PDF includes multiple part numbers: UF5407G, UF5400G. Please refer to the document for exact specifications by model.

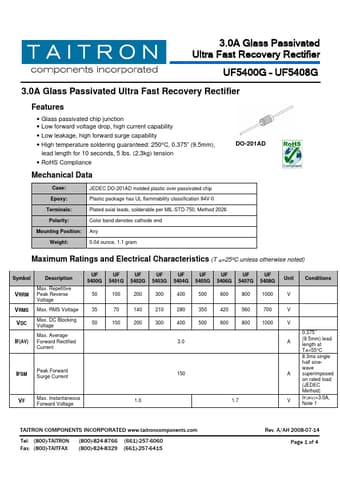

Additional preview pages of the UF5407G datasheet.

UF5407G Product details

Description

VRRM VRMS Max.Repetitive Peak Reverse Voltage Max.RMS Voltage VDC Max.DC Blocking Voltage IF(AV) Max.Average Forward Rectified Current UF UF UF UF UF UF

Features

Glass passivated chip junction.
Low forward voltage drop, high current capability.
Low leakage, high forward surge capability.
High temperature soldering guaranteed: 250°C, 0.375” (9.5mm), lead length for 10 seconds, 5 lbs. (2.3kg) tension.
RoHS Compliance Mechanical Data DO-201AD Case: JEDEC DO-201AD molded plastic over passivated chip Epoxy: Plastic package has UL flammability classification 94V-0 Terminals: Plated axial leads, solderable pe.
