TB101G, TB1005G - 10A Glass Passivated Bridge Rectifier

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TB101G, TB1005G. Please refer to the document for exact specifications by model.

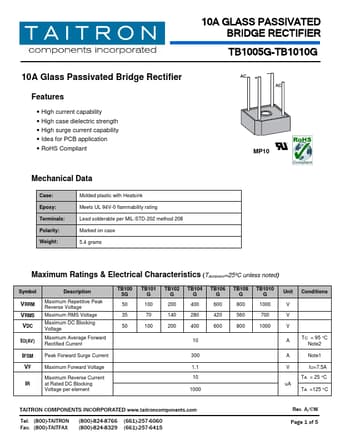

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number TB101G, TB1005G
Manufacturer TAITRON
File Size 333.73 KB
Description 10A Glass Passivated Bridge Rectifier
Datasheet download datasheet TB1005G-TAITRON.pdf
Note This datasheet PDF includes multiple part numbers: TB101G, TB1005G.
Please refer to the document for exact specifications by model.

TB101G Product details

Description

Maximum Repetitive Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current TB100 5G TB101 TB102 TB104 TB106 TB108 TB1010 GGGGG G Unit Conditions 50 100 200 400 600 800 1000 V 35 70 140 280 420 560 700 V 50 100 200 400 600 800 1000 V 10 A TC = 95 °C Note2 IFSM VF IR Peak Forward Surge Current Maximum Forward Voltage Maximum Reverse Current at Rated DC Blocking Vol

Features
