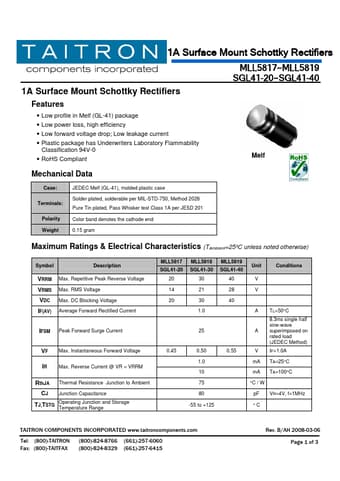

Datasheet Details
Part number:
SGL41-40, SGL41-20
Manufacturer:
TAITRON
File Size:
138.02 KB
Description:
1a surface mount schottky rectifiers.
Note:
This datasheet PDF includes multiple part numbers: SGL41-40, SGL41-20.
Please refer to the document for exact specifications by model.
VRRM VRMS VDC IF(AV) Max.
Repetitive Peak Reverse Voltage Max.
RMS Voltage Max.
DC Blocking Voltage Average Forward Rectified Current IFSM Peak Forward Surge Current VF Max.
Instantaneous Forward Voltage IR Max.
Reverse Current @ VR = VRRM RthJA Thermal Resistance Junction to Ambient
SGL41-40 Features
* Low profile in Melf (GL-41) package
* Low power loss, high efficiency
* Low forward voltage drop; Low leakage current
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* RoHS Compliant Melf Mechanical Data Case: Terminals: Po
