RMX50T, RMX1W - Metal Oxide Resistor

TAITRON

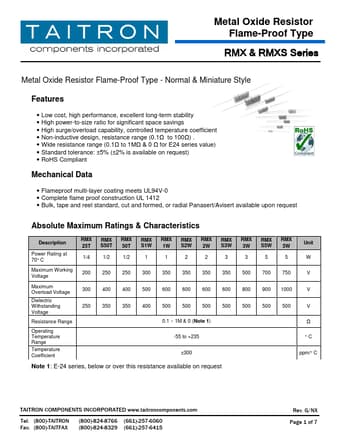

RMX50T Datasheet Preview — This datasheet PDF includes multiple part numbers: RMX50T, RMX1W. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	RMX50T, RMX1W
Manufacturer	TAITRON
File Size	462.17 KB
Description	Metal Oxide Resistor
Datasheet	RMX1W_TAITRON.pdf
Note	This datasheet PDF includes multiple part numbers: RMX50T, RMX1W. Please refer to the document for exact specifications by model.

RMX50T Product details

Description

Power Rating at 70°C RMX 25T 1/4 RMX S50T 1/2 RMX 50T 1/2 RMX S1W 1 RMX 1W 1 RMX S2W 2 RMX 2W 2 RMX S3W 3 Maximum Working Voltage 200 250 250 300 350 350 350 350 Maximum Overload Voltage 300 400 400 500 600 600 600 600 Dielectric Withstanding Voltage 250 350 350 400 500 500 500 500 Resistance Range 0.1 ~ 1M & 0 (Note 1) Operating Temperature Range Temperature Coefficient -55 to +235 ±300 Note 1: E-24 series, below or over this resistance available on request RMX

Features

Low cost, high performance, excellent long-term stability.
High power-to-size ratio for significant space savings.
High surge/overload capability, controlled temperature coefficient.
Non-inductive design, resistance range (0.1Ω to 100Ω).
Wide resistance range (0.1Ω to 1MΩ & 0 Ω for E24 series value).
Standard tolerance: ±5% (±2% is available on request).
RoHS Compliant Mechanical Data.
Flameproof multi-layer coating meets UL94V-0.
Complete flame pr.
