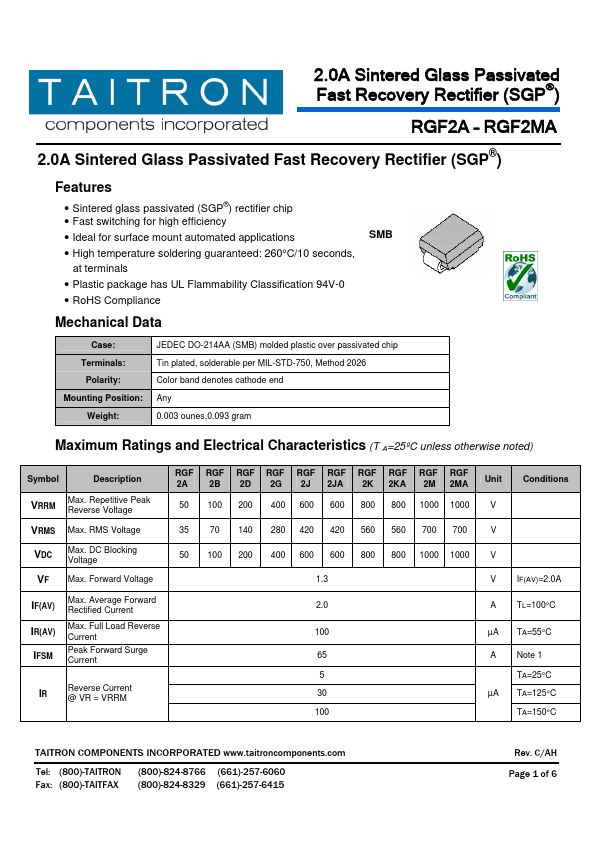

The RGF2M by TAITRON is a 2.0A Sintered Glass Passivated Fast Recovery Rectifier. Below is the official datasheet preview.
| Part number | RGF2M, RGF2A |
|---|---|
| Manufacturer | TAITRON |
| File Size | 177.03 KB |
| Description | 2.0A Sintered Glass Passivated Fast Recovery Rectifier |
| Datasheet |
 RGF2A-TAITRON.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: RGF2M, RGF2A. Please refer to the document for exact specifications by model. |
|
|
VRRM Max.Repetitive Peak Reverse Voltage RGF RGF RGF RGF RGF RGF RGF RGF RGF RGF 2A 2B 2D 2G 2J 2JA 2K 2KA 2M 2MA Unit 50 100 200 400 600 600 800 800 1000 1000 V Conditions VRMS Max.RMS Voltage VDC Max.DC Blocking Voltage VF Max.Forward Voltage 35 70 140 280 420 420 560 560 700 700 V 50 100 200 400 600 600 800 800 1000 1000 V 1.3 V IF(AV)=2.0A IF(AV) Max.Average Forward Rectified Current 2.0 IR(AV) Max.Full Load Reverse Current 100 IFSM Peak Forward Surge Current 6
