MPSA55 - Small Signal General Purpose Transistors

TAITRON

📥 Download Datasheet

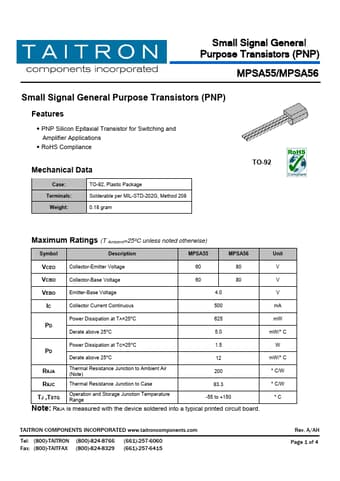

MPSA55 Datasheet Preview — Preview of MPSA55 PDF

Datasheet Details

Part number	MPSA55
Manufacturer	TAITRON
File Size	213.13 KB
Description	Small Signal General Purpose Transistors
Datasheet	MPSA55-TAITRON.pdf

MPSA55 Product details

Description

MPSA55 MPSA56 Unit VCEO VCBO VEBO IC Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Continuous 60 80 60 80 4.0 500 V V V mA Power Dissipation at TA=25°C PD Derate above 25°C 625 mW 5.0 mW/° C Power Dissipation at TC=25°C PD Derate above 25°C 1.5 12 RθJA Thermal Resistance Junction to Ambient Air (Note) 200 RθJC Thermal Resistance Junction to Case 83.3 TJ ,TSTG Operation and Storage Junction Temperature Range -55 to +150 Note: RθJA is

Features

PNP Silicon Epitaxial Transistor for Switching and Amplifier.
