ICTE-10 - 1500W Transient Voltage Suppressor

Download the ICTE-10 datasheet PDF. This datasheet also covers the ICTE-5 variant, as both devices belong to the same 1500w transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

General Description

TJ,TSTG .

Key Features

  • Glass passivated junction.
  • 1500W Peak Pulse Power capability with a 10/1000 μs waveform.
  • Very Low clamping voltage.
  • Stand-off Voltage Range 5V to 45V.
  • Unidirectional and Bidirectional.
  • 100% surge tested.
  • Fast response time: 1x10-12 seconds (theoretical).
  • High temperature soldering guaranteed 260°C/10 seconds (1.59mm from case).
  • RoHS Compliant and Halogen Free 1.5KE Mechanical Data Case: Terminals: Polarity: Moun.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ICTE-5-TAITRON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ICTE-10
Manufacturer TAITRON
File Size 170.15 KB
Description 1500W Transient Voltage Suppressor
Datasheet download datasheet ICTE-10 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ICTE-10 Silicon Avalanche Diodes Littelfuse
ICTE-10 GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR MDE
ICTE-10 Zener Transient Voltage Suppressors ON Semiconductor
ICTE-10 TRANSIENT VOLTAGE SUPPRESSOR Microsemi
ICTE-10 TRANSIENT VOLTAGE SUPPRESSORS DIGITRON SEMICONDUCTORS

Other Datasheets by TAITRON

Part Number Description
ICTE-10C 1500W Transient Voltage Suppressor
ICTE-12 1500W Transient Voltage Suppressor
ICTE-12C 1500W Transient Voltage Suppressor
ICTE-15 1500W Transient Voltage Suppressor
ICTE-15C 1500W Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

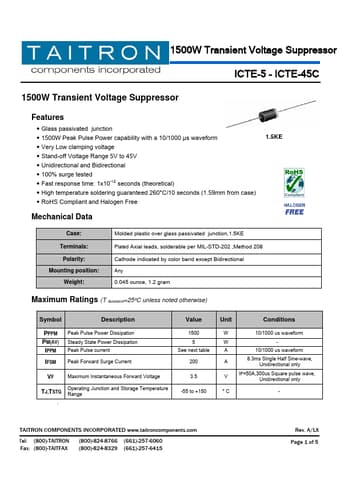

1500W Transient Voltage Suppressor ICTE-5 - ICTE-45C 1500W Transient Voltage Suppressor Features • Glass passivated junction • 1500W Peak Pulse Power capability with a 10/1000 μs waveform • Very Low clamping voltage • Stand-off Voltage Range 5V to 45V • Unidirectional and Bidirectional • 100% surge tested • Fast response time: 1x10-12 seconds (theoretical) • High temperature soldering guaranteed 260°C/10 seconds (1.59mm from case) • RoHS Compliant and Halogen Free 1.5KE Mechanical Data Case: Terminals: Polarity: Mounting position: Weight: Molded plastic over glass passivated junction,1.5KE Plated Axial leads, solderable per MIL-STD-202 ,Method 208 Cathode indicated by color band except Bidirectional Any 0.045 ounce, 1.
