DF06M - 1.0A Glass Passivated Bridge Rectifier

Download the DF06M datasheet PDF. This datasheet also covers the DF005M variant, as both devices belong to the same 1.0a glass passivated bridge rectifier family and are provided as variant models within a single manufacturer datasheet.

Description

Max.

Max.

Max.

Features

  • Glass Passivated Die Construction.
  • Low leakage.
  • Ideal for printed circuit boards.
  • Applicable for automotive insertion.
  • High surge current capability.
  • This series is UL recognized under component index, File number E194718.
  • RoHS Compliant Mechanical Data DFM Case: DFM Epoxy: Plastic package has UL flammability classification 94V-0 Terminals: Leads solderable per MIL-STD-202, method 208 Polarity: As marked on case Mounting P.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DF005M-TAITRON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DF06M
Manufacturer TAITRON
File Size 141.31 KB
Description 1.0A Glass Passivated Bridge Rectifier
Datasheet download datasheet DF06M Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DF06M 1A Single Phase D.I.L. Rectifier Bridge International Rectifier
DF06M Bridge Rectifiers Fairchild Semiconductor
DF06M 1.0A GLASS PASSIVATED BRIDGE RECTIFIERS Diodes Incorporated
DF06M MINIATURE GLASS PASSIVATED SINGLE-PHASE-BRIDGE RECTIFIER General Semiconductor
DF06M Single-Phase Bridge Rectifiers Comchip Technology

Other Datasheets by TAITRON

Part Number Description
DF06S 1.0A Surface Mount Bridge Rectifier
DF005M 1.0A Glass Passivated Bridge Rectifier
DF005S 1.0A Surface Mount Bridge Rectifier
DF01M 1.0A Glass Passivated Bridge Rectifier
DF01S 1.0A Surface Mount Bridge Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

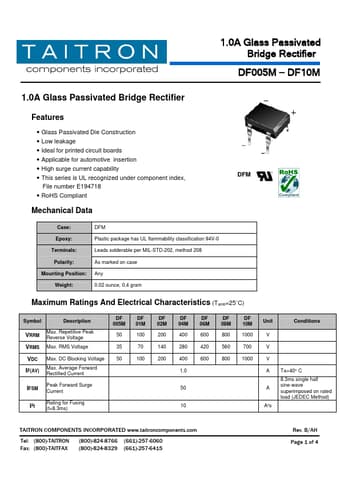

1.0A Glass Passivated Bridge Rectifier DF005M – DF10M 1.0A Glass Passivated Bridge Rectifier Features • Glass Passivated Die Construction • Low leakage • Ideal for printed circuit boards • Applicable for automotive insertion • High surge current capability • This series is UL recognized under component index, File number E194718 • RoHS Compliant Mechanical Data DFM Case: DFM Epoxy: Plastic package has UL flammability classification 94V-0 Terminals: Leads solderable per MIL-STD-202, method 208 Polarity: As marked on case Mounting Position: Any Weight: 0.02 ounce, 0.4 gram Maximum Ratings And Electrical Characteristics (Tamb=25˚C) Symbol Description VRRM VRMS Max. Repetitive Peak Reverse Voltage Max.
