BZT52C2V4-F - 410mW Two Terminals SMD Zener Diodes

TAITRON

📥 Download Datasheet

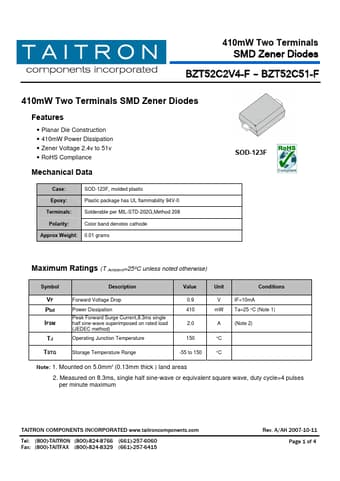

BZT52C2V4-F Datasheet Preview — Preview of BZT52C2V4-F PDF

Datasheet Details

Part number	BZT52C2V4-F
Manufacturer	TAITRON
File Size	208.18 KB
Description	410mW Two Terminals SMD Zener Diodes
Datasheet	BZT52C2V4-F-TAITRON.pdf

BZT52C2V4-F Product details

Description

Forward Voltage Drop Power Dissipation Peak Forward Surge Current,8.3ms single half sine-wave superimposed on rated load (JEDEC method) Operating Junction Temperature Storage Temperature Range Value 0.9 410 2.0 150 -55 to 150 Unit Conditions V IF=10mA mW Ta=25 °C (Note 1) A (Note 2) °C °C Note: 1. Mounted on 5.0mm²(0.13mm thick ) land areas 2. Measured on 8.3ms, single half sine-wave or equivalent square wave, duty cycle=4 pulses per minute

Features

Planar Die Construction.
410mW Power Dissipation.
Zener Voltage 2.4v to 51v.
RoHS Compliance Mechanical Data Case: SOD-123F, molded plastic Epoxy: Plastic package has UL flammability 94V-0 Terminals: Solderable per MIL-STD-202G,Method 208 Polarity: Color band denotes cathode Approx Weight: 0.01 grams SOD-123F Maximum Ratings (T Ambient=25ºC unless noted otherwise) Symbol VF Ptot IFSM TJ TSTG.
