1.5SMCJ110A - 1500W Surface Mount Transient Voltage Suppressor

Download the 1.5SMCJ110A datasheet PDF. This datasheet also covers the 1.5SMCJ6.8A variant, as both devices belong to the same 1500w surface mount transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Description

Value PPPM IPPM Peak Pulse Power Dissipation on 10/1000 us waveform Peak Pulse

Features

  • Low inductance, excellent clamping capability.
  • Repetition rate(duty cycle): 0.05%.
  • Fast response time: typically less than 1.0ps from 0V to BV min.
  • Typical IR less than 1 µA above 10V SMC.
  • High temperature soldering guaranteed 250°C/10 seconds at terminals.
  • This series is UL recognized under component index. File number E315008.
  • RoHS Compliant Mechanical Data Case: Epoxy: Terminals: Polarity: Mounting position: Weight: JE.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1.5SMCJ6.8A-TAITRON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1.5SMCJ110A
Manufacturer TAITRON
File Size 181.63 KB
Description 1500W Surface Mount Transient Voltage Suppressor
Datasheet download datasheet 1.5SMCJ110A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1.5SMCJ110A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR KD
1.5SMCJ110A 1500W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR TIPTEK
1.5SMCJ110A 1500W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR WON-TOP
1.5SMCJ110A SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR PAN JIT
1.5SMCJ110A SMD Transient Voltage Suppresssor Diodes Diotec

Other Datasheets by TAITRON

Part Number Description
1.5SMCJ110CA 1500W Surface Mount Transient Voltage Suppressor
1.5SMCJ11A 1500W Surface Mount Transient Voltage Suppressor
1.5SMCJ11CA 1500W Surface Mount Transient Voltage Suppressor
1.5SMCJ100A 1500W Surface Mount Transient Voltage Suppressor
1.5SMCJ100CA 1500W Surface Mount Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

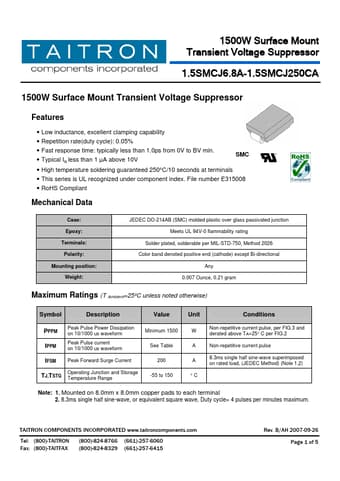

1500W Surface Mount Transient Voltage Suppressor 1.5SMCJ6.8A-1.5SMCJ250CA 1500W Surface Mount Transient Voltage Suppressor Features • Low inductance, excellent clamping capability • Repetition rate(duty cycle): 0.05% • Fast response time: typically less than 1.0ps from 0V to BV min. • Typical IR less than 1 µA above 10V SMC • High temperature soldering guaranteed 250°C/10 seconds at terminals • This series is UL recognized under component index.
