SA8345 - 3.5A 3.0-25.0V H-Bridge Driver

Name: SA8345
SKU: SA8345-1594058

📥 Download Datasheet

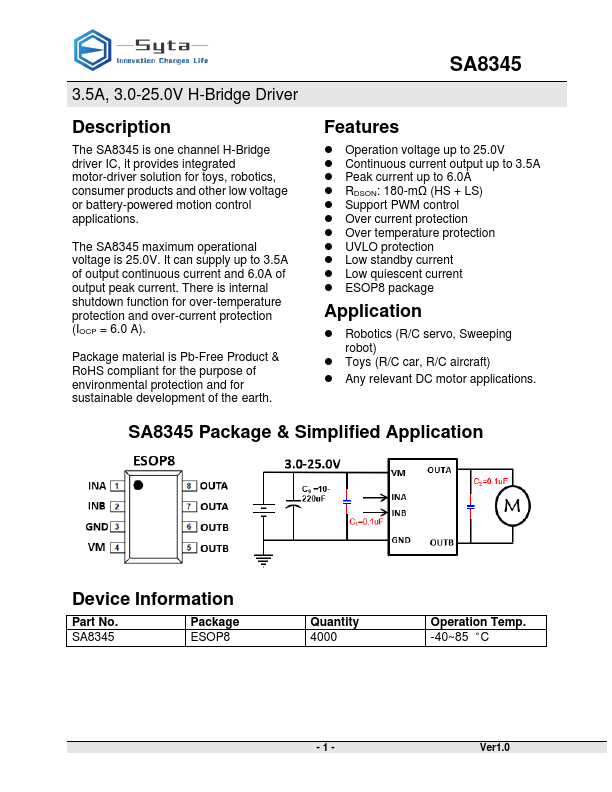

SA8345 Datasheet Preview — Preview of SA8345 PDF

Datasheet Details

Part number	SA8345
Manufacturer	Sytatek
File Size	162.62 KB
Description	3.5A 3.0-25.0V H-Bridge Driver
Datasheet	SA8345-Sytatek.pdf

SA8345 Product details

Description

The SA8345 is one channel H-Bridge driver IC, it provides integrated motor-driver solution for toys, robotics, consumer products and other low voltage or battery-powered motion control applications.

Features

Operation voltage up to 25.0V.
Continuous current output up to 3.5A.
Peak current up to 6.0A.
RDSON: 180-mΩ (HS + LS).
Support PWM control.
Over current protection.
Over temperature protection.
UVLO protection.
Low standby current.
Low quiescent current.

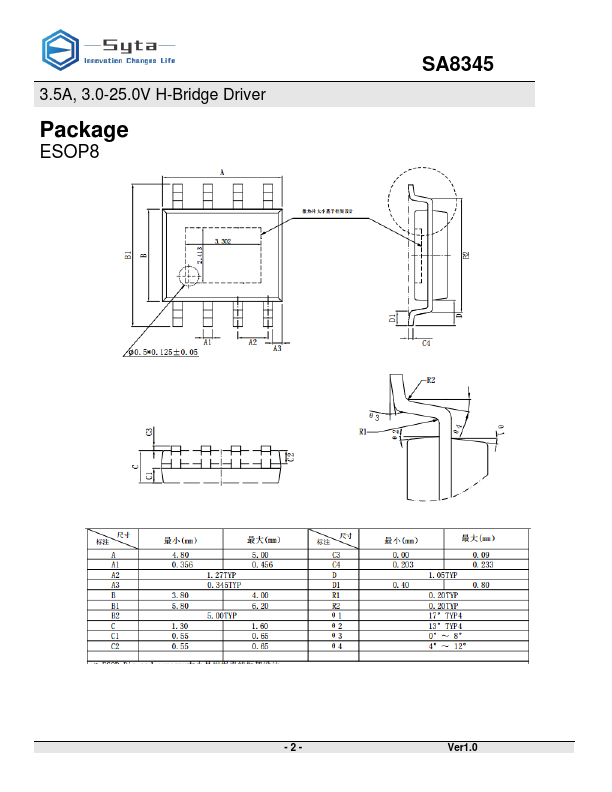

ESOP8 package.
