SA2103 - 250V High Side & Low Side Gate Drive IC

📥 Download Datasheet

SA2103 Datasheet Preview — Preview of SA2103 PDF

Datasheet Details

Part number: SA2103
Manufacturer: Sytatek
File Size: 128.86 KB
Datasheet: SA2103-Sytatek.pdf
Description: 250V High Side & Low Side Gate Drive IC

SA2103 Product details

Description

The SA2103 is a high voltage, high speed power MOSFET driver with independent high and low side referenced output channels based on P_SUB P_EPI process.

Features

Fully operational to 250V.
3.3/5/15V input logic compatible.
VCC range from 10V to 20V.
1.0A/1.5A(typ. ) current capability.
Deadtime 200ns (typ. ).
UVLO for VCC and VBS.
Tolerant to negative transient voltage.
Matched propagation delay.
SOP8 package available Application.
Power Motor Driver.
Half-Bridge Power Converters.

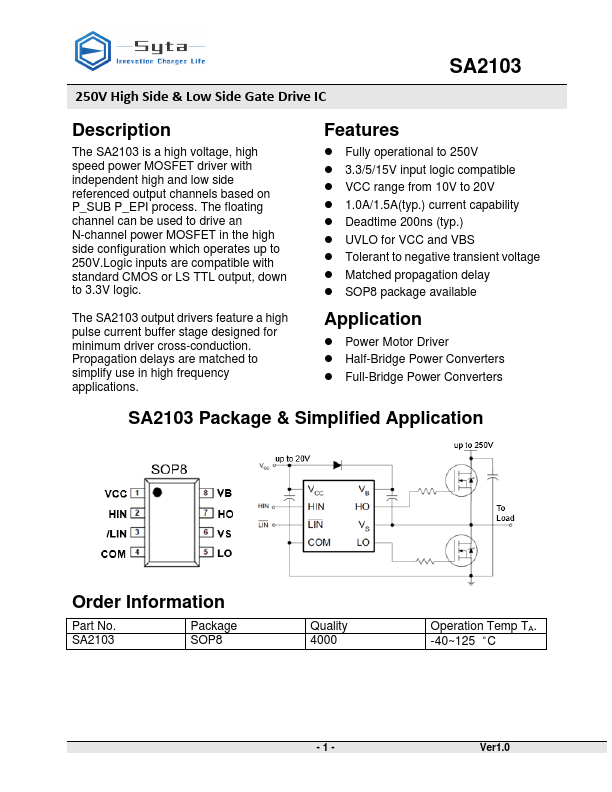

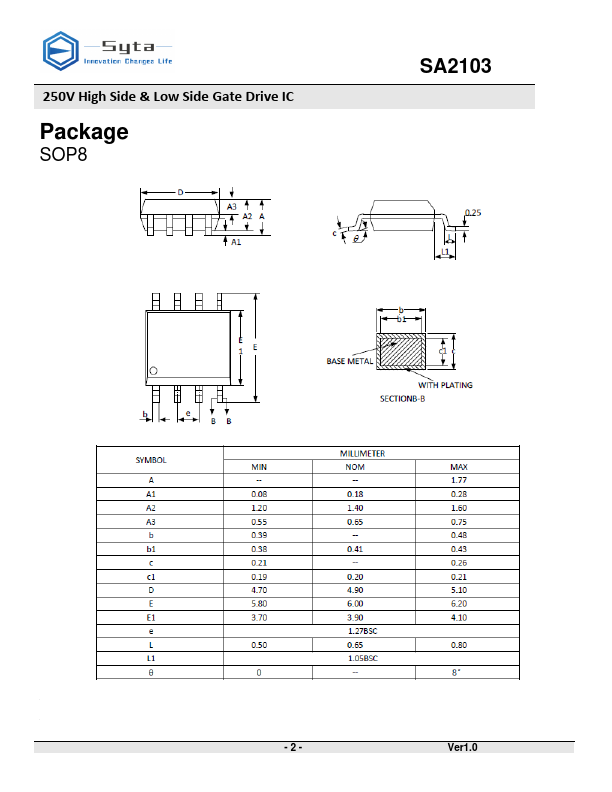

Full-Bridge Power Converters SA2103 Package & Simplified Application Order Information Part No. SA2103 Package SO.
