SL4011B, Quad 2-Input NAND Gate

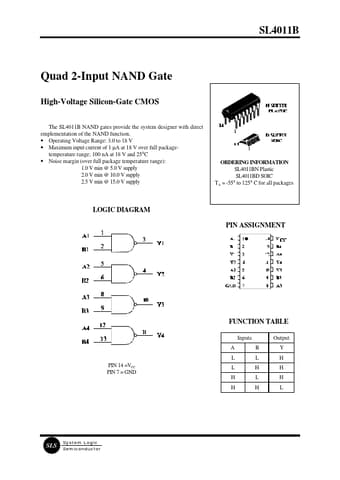

SL4011B Quad 2-Input NAND Gate High-Voltage Silicon-Gate CMOS The SL4011B NAND gates provide the system designer with direct emplementation of the NAND function.

Operating Voltage Range: 3.0 to 18 V Maximum input current of 1 µA at 18 V over full packagetemperature range; 100 nA at 18 V and 25°C Noise margin (over full package temperature range): 1.0 V min @ 5.0 V supply 2.0 V min @ 10.0 V supply 2.5 V min @ 15.0 V supply ORDERING INFORMATION SL4011BN Plastic SL40
