SL3010 - INFRARED REMOTE CONTROL TRANSMITTER RC-5

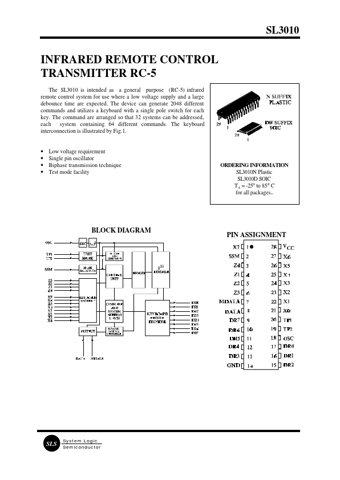

The SL3010 by System Logic Semiconductor is a INFRARED REMOTE CONTROL TRANSMITTER RC-5. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the SL3010 INFRARED REMOTE CONTROL TRANSMITTER RC-5 datasheet (System Logic Semiconductor).

Datasheet Details

Part number SL3010
Manufacturer System Logic Semiconductor
File Size 96.05 KB
Description INFRARED REMOTE CONTROL TRANSMITTER RC-5
Datasheet download datasheet SL3010_SystemLogicSemiconductor.pdf
Additional preview pages of the SL3010 datasheet.

SL3010 Product details

Description

PIN No 1 2 3-6 7 8 9-13 14 15-17 18 19 20 21-27 28 (I) (IPU) (ODN) (OP3) DESIGNATION X7 (IPU) SSM (I) Z0-Z3 (IPU) MDATA (OP3) DESCRIPTION sense input from key matrix system mode selection input sense inputs from key matrix generated output data modulated with 1/2 the oscillator frequency at a 25% duty factor generated output information scan drivers ground (0V) scan drivers oscillator input test point 2 test point 1 sense inputs from key matrix voltage supply DATA (OP3) DR7-DR3 (ODN) GND DR2-DR
