SL20T0081 - SLS System Logic Semiconductor

Features

  • Direct display of RAM data through the display data RAM. RAM capacity : 81x132 = 8580 bits Table 1. Duty and Bias selection Duty 1/81 1/65 1/55 1/49 1/33 RAM bit data : LCD Driver Bias 1/10 or 1/8 1/9 or 1/7 1/8 or 1/6 1/8 or 1/6 1/6 or 1/5 “1” Non-illuminated “0” illuminated (during normal display) Maximum display matrix 81 x 132 65 x 132 55 x 132 49 x 132 33 x 132 High-speed 8-bit MPU interface The chip can be connected directly to the both the 80x86 series MPUs and the 68000 series MPUs. Ser.

📥 Download Datasheet

Datasheet preview – SL20T0081

Datasheet Details

Part number SL20T0081
Manufacturer System Logic Semiconductor
File Size 189.14 KB
Description SLS System Logic Semiconductor
Datasheet download datasheet SL20T0081 Datasheet
Additional preview pages of the SL20T0081 datasheet.

📁 Similar Datasheet

  • SL20T135FL - Trench FS IGBT (Slkor)
  • SL2009 - Dual stage IF amplifier (Zarlink Semiconductor Inc)
  • SL200H120TL - IGBT (Slkor)
  • SL2015 - Full Band Satellite Tuner (Mitel Networks Corporation)
  • SL2017 - Full Band Satellite Tuner (Mitel Networks Corporation)
  • SL2030 - High Performance Broadband Mixer Oscillator (Mitel Networks Corporation)
  • SL2035 - High Performance Broadband Downconverter (Mitel Networks Corporation)
  • SL2055 - PREAMPLIFIER FOR REMOTE CONTROL USE (AUK corp)
  • SL20S120F - FAST RECOVER DIODE (Slkor)
  • SL2 ICS11 - Smart Label IC (Philips)
Other Datasheets by System Logic Semiconductor
  • SL2410 - Tone Ringer
  • SL2411 - Tone Ringer
  • SL2418 - Telephone Tone Ringer with Bridge Diode

Full PDF Text Transcription

Click to expand full text

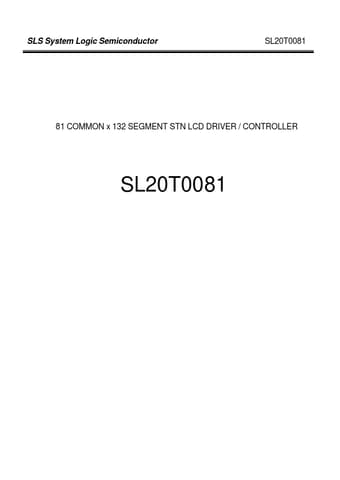

SLS System Logic Semiconductor SL20T0081 81 COMMON x 132 SEGMENT STN LCD DRIVER / CONTROLLER SL20T0081 SLS System Logic Semiconductor SL20T0081 DEVICE SPECIFICATION OVERVIEW INTRODUCTION The SL20T0081 is a single-chip graphic dot-matrix liquid crystal display driver & controller that can be connected directly to a microprocessor bus. 8-bit parallel or serial display data sent from the microprocessor is stored in the internal display data RAM and the chip generates a liquid crystal drive signal independent of the micro-processor.
