LS164 - 8-Bit Serial-Input/Parallel-Output Shift Register

Name: LS164
SKU: LS164-394193

System Logic Semiconductor

The LS164 by System Logic Semiconductor is a 8-Bit Serial-Input/Parallel-Output Shift Register. Below is the official datasheet preview.

Datasheet Details

Part number	LS164
Manufacturer	System Logic Semiconductor
File Size	36.46 KB
Description	8-Bit Serial-Input/Parallel-Output Shift Register
Datasheet	LS164_SystemLogicSemiconductor.pdf

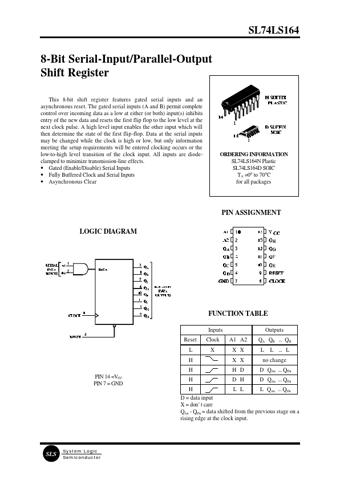

Additional preview pages of the LS164 datasheet.

gated serial inputs and an asynchronous reset. The gated serial inputs (A and B) permit complete control over incoming data as a low at either (or both) input(s) inhibits entry of the new data and resets the first flip flop to the low level at the next clock pulse. A high level input enables the other input which will then determine the state of the first flip-flop. Data at the serial inputs may be changed while the clock is high or low, but only information meeting the setup requirements will b.
