34063AP1, DC-to-DC Converter Controller

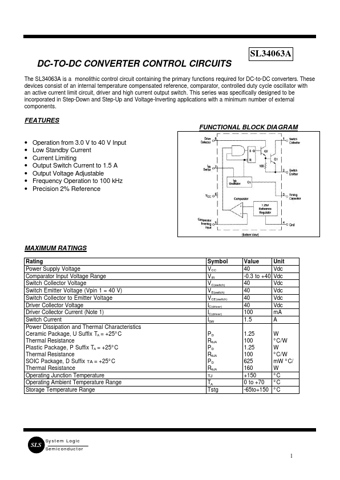

SL34063A DC-TO-DC CONVERTER CONTROL CIRCUITS The SL34063A is a monolithic control circuit containing the primary functions required for DC-to-DC converters.
These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch.
This series was specifically designed to be incorporated in Step-Down and Step-Up and Voltage-Inverting applications with a minimum number of externa
34063AP1 Features
* FUNCTIONAL BLOCK DIAGRAM
* Operation from 3.0 V to 40 V Input Low Standby Current Current Limiting Output Switch Current to 1.5 A Output Voltage Adjustable Frequency Operation to 100 kHz Precision 2% Reference MAXIMUM RATINGS Ratin
