SGN01G64D2BG1SA-CCRT - SDRAM SO-DIMM

Download the SGN01G64D2BG1SA-CCRT datasheet PDF (SGN01G64D2BG1SA-xxRT included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for sdram so-dimm.

Features

  • es: 204-pin 64-bit DDR3 Small Outline Dual-In-Line Double Data Rate Synchronous DRAM module Module organization: single rank 128M x 64 VDD = 1.5V ±0.075V, VDDQ 1.5V ±0.075V 1.5V I/O ( SSTL_15 compatible) Fly-by-bus with termination for C/A & CLK bus 2 On-board I C temperature sensor with integrated serial presence-detect (SPD) EEPROM Gold-contact pads This module is fully pin and functional compatible to the JEDEC PC3-12800 spec. and JEDEC- Standard MO-268. (see www. jedec. org) The pcb and all co.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SGN01G64D2BG1SA-xxRT-Swissbit.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • SGN5210 - 2.4 GHz RF Transceiver (SIGNIA)
  • SGN6210 - RF Transceiver/Framer (Signia)
Other Datasheets by Swissbit

Full PDF Text Transcription

Click to expand full text

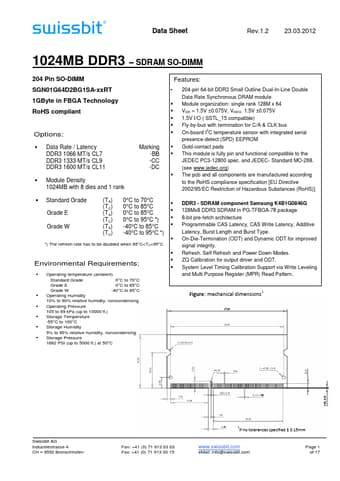

Data Sheet Rev.1.2 23.03.2012 1024MB DDR3 – SDRAM SO-DIMM 204 Pin SO-DIMM SGN01G64D2BG1SA-xxRT 1GByte in FBGA Technology RoHS compliant  Features: 204-pin 64-bit DDR3 Small Outline Dual-In-Line Double Data Rate Synchronous DRAM module Module organization: single rank 128M x 64 VDD = 1.5V ±0.075V, VDDQ 1.5V ±0.075V 1.5V I/O ( SSTL_15 compatible) Fly-by-bus with termination for C/A & CLK bus 2 On-board I C temperature sensor with integrated serial presence-detect (SPD) EEPROM Gold-contact pads This module is fully pin and functional compatible to the JEDEC PC3-12800 spec. and JEDEC- Standard MO-268. (see www.jedec.
