ST0521D4 - 1-Line Ultra Low Capacitance Bi-directional TVS Diode

Datasheet Summary

Description

The ST0521D4 is a bi-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive high-speed data lines.

Features

  • Ultra small package: 1.0x0.6x0.5mm.
  • Ultra low capacitance: 0.26pF typical.
  • Ultra low leakage: nA level.
  • Low operating voltage: 5V.
  • Low clamping voltage.
  • 2-pin leadless package.
  • Complies with following standards:.
  • IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV.
  • IEC61000-4-4 (EFT) 40A (5/50ns).
  • IEC61000-4-5 (Lightning) 4A (8/20µs).
  • RoHS Compliant.

📥 Download Datasheet

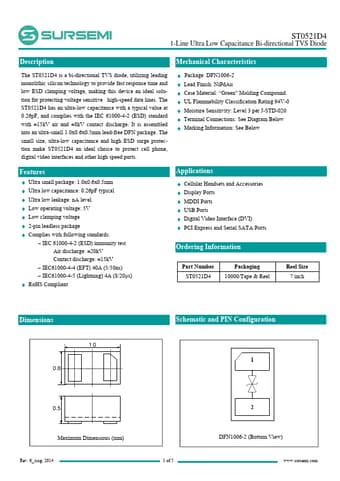

Datasheet preview – ST0521D4
